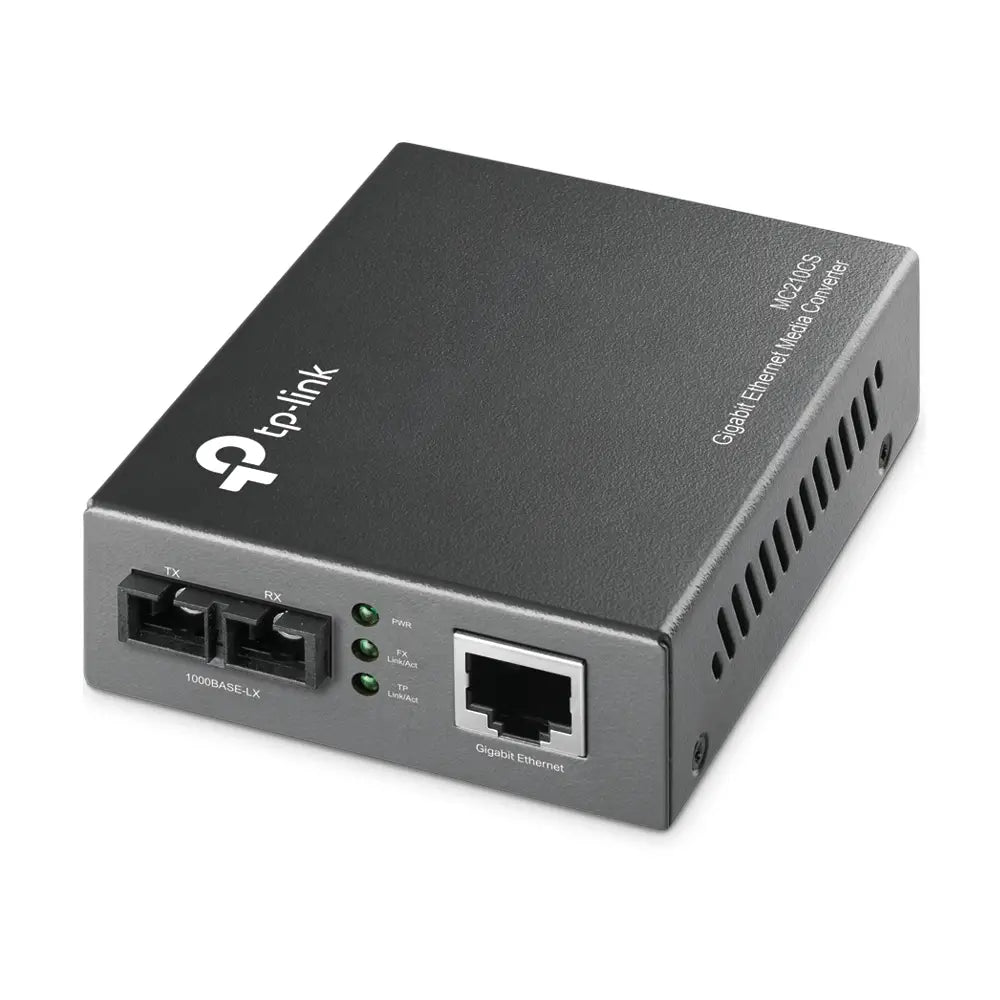

TP-LINK MC210CS GIGABIT SINGLE-MODE MEDIA CONVERTER
Click to open expanded view
Brand keytechonline.com
Title TP-LINK MC210CS GIGABIT SINGLE-MODE MEDIA CONVERTER

TP-LINK MC210CS GIGABIT SINGLE-MODE MEDIA CONVERTER

SPECIFICATION

BRAND : TP-LINK

MANUFACTURE : FIBER MEDIA CONVERTER

MODEL : MC210CS

BASIC FUNCTION : AUTO-NEGOTIATION

WAVE LENGTH : 1310nm

NTWORK MEDIA : SINGLE-MODE

PORTS : FIBER TO RJ45

POWER SUPPLY : EXTERNAL POWER ADAPTER

MAX POWER CONSUMPTION : 1.8W

DESCRIPTION

TP-Link MC210CS Gigabit Single-Mode Media Converter-TP-Link MC210CS 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX, Auto-negotiation of Half-Duplex / Full-Duplex transfer mode, Complies with IEEE 802.3ab and IEEE 802.3z, Extends fiber distance up to 20km.

The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 9.3 miles (15km).

MEDIA CONVERTER & MODULE-Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, Basic Function Extends fiber distance up to 9.3 miles (15km), Ports 1 x 1000M dual SC/UPC port 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX), Wave Length 1310nm, Network Media 1000BASE-LX Single-mode Fiber, Network Media 1000BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m), LED Indicators PWR, Link/Act, Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in.(95 × 73 × 27 mm), Power Supply External Power Adapter, Max Power Consumption , 1.8W, Safety & Emission FCC, CE, RoHS, Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉), Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing.

Price
12.000 KD
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

  • We offer free shipping on all orders over 100 KD within the Kuwait city and Salmiya Shuwaikh.
  • For orders under 100 KD, a flat shipping fee of 3 KD for Accessories will be applied and 5 KD for Network Cabinets.
