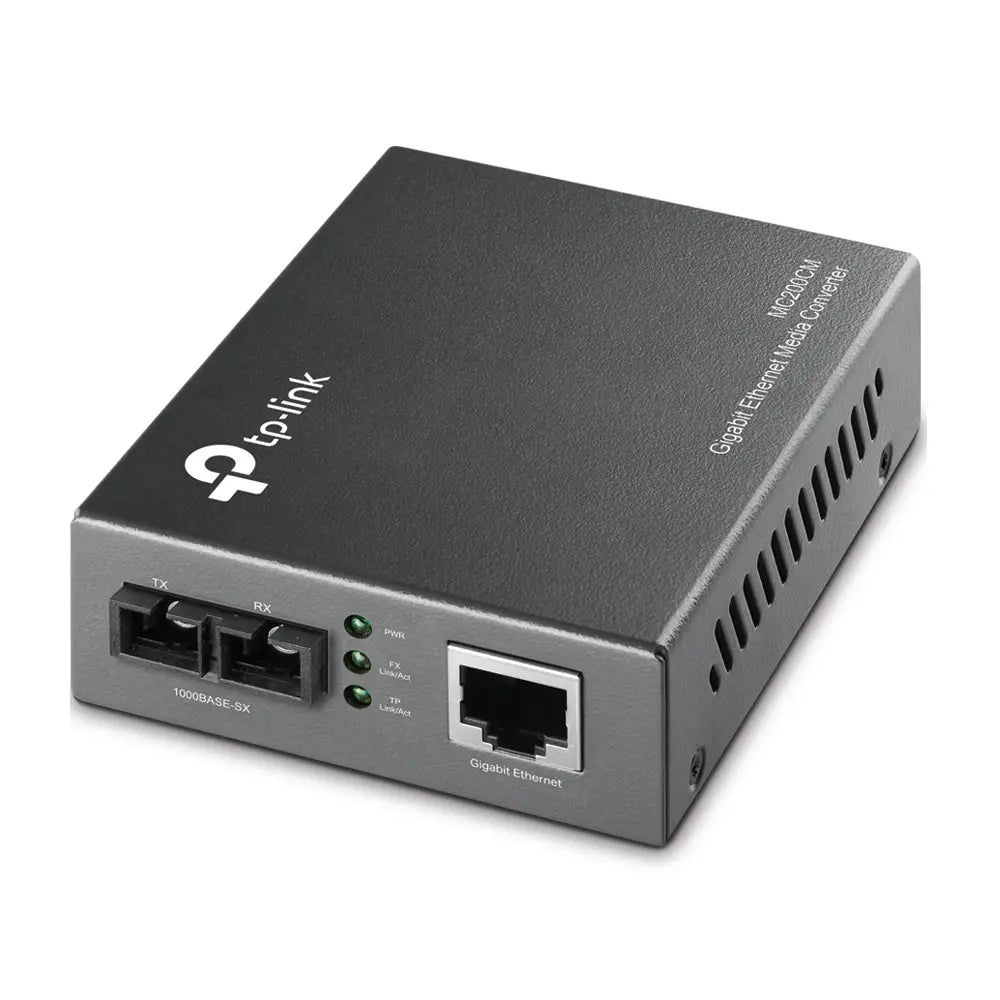

TP-LINK MC200CM GIGABIT MULTI-MODE MEDIA CONVERTER
Click to open expanded view
Brand keytechonline.com
Title TP-LINK MC200CM GIGABIT MULTI-MODE MEDIA CONVERTER

TP-LINK MC200CM GIGABIT MULTI-MODE MEDIA CONVERTER

SPECIFICATION

BRAND : TP-LINK

MANUFACTURE : FIBER MEDIA CONVERTER

MODEL : MC200CM

BASIC FUNCTION : AUTO-NEGOTIATION

WAVE LENGTH : 850nm

NTWORK MEDIA : MULTI-MODE

PORTS : FIBER TO RJ45

POWER SUPPLY : EXTERNAL POWER ADAPTER

MAX POWER CONSUMPTION : 1.66W

DESCRIPTION

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).

Basic Function Auto-negotiation of Half-Duplex / Full-Duplex transfer mode, Extends fiber distance up to 1,800 feet (550m) using 50/125um fiber, Extends fiber distance up to 720 feet (220m) using 62.5/125um fiber, Ports 1 x 1000M dual SC/UPC port, 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX), Wave Length 850nm, Network Media 1000BASE-SX Multi-mode Fiber, Network Media 1000BASE-T UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), LED Indicators PWR, Link/Act, Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm), Power Supply External Power Adapter, Max Power Consumption 1.66W, Environment Operating Temperature: 0℃~40℃ (32℉~104℉), Storage Temperature: -40℃~70℃ (-40℉~158℉), Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing.

Price
12.000 KD
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

  • We offer free shipping on all orders over 100 KD within the Kuwait city and Salmiya Shuwaikh.
  • For orders under 100 KD, a flat shipping fee of 3 KD for Accessories will be applied and 5 KD for Network Cabinets.

Have a question?
TP-LINK MC200CM GIGABIT MULTI-MODE MEDIA CONVERTER

TP-LINK MC200CM GIGABIT MULTI-MODE MEDIA CONVERTER

12.000 KD

Product info

SPECIFICATION

BRAND : TP-LINK

MANUFACTURE : FIBER MEDIA CONVERTER

MODEL : MC200CM

BASIC FUNCTION : AUTO-NEGOTIATION

WAVE LENGTH : 850nm

NTWORK MEDIA : MULTI-MODE

PORTS : FIBER TO RJ45

POWER SUPPLY : EXTERNAL POWER ADAPTER

MAX POWER CONSUMPTION : 1.66W

DESCRIPTION

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).

Basic Function Auto-negotiation of Half-Duplex / Full-Duplex transfer mode, Extends fiber distance up to 1,800 feet (550m) using 50/125um fiber, Extends fiber distance up to 720 feet (220m) using 62.5/125um fiber, Ports 1 x 1000M dual SC/UPC port, 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX), Wave Length 850nm, Network Media 1000BASE-SX Multi-mode Fiber, Network Media 1000BASE-T UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), LED Indicators PWR, Link/Act, Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm), Power Supply External Power Adapter, Max Power Consumption 1.66W, Environment Operating Temperature: 0℃~40℃ (32℉~104℉), Storage Temperature: -40℃~70℃ (-40℉~158℉), Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing.
