RUIJIE RG-NIS-PA120-48 INDUSTRIAL POWER SUPPLY AC/DC RAIL MOUNTABLE 120W
RUIJIE RG-NIS-PA120-48 INDUSTRIAL POWER SUPPLY AC/DC RAIL MOUNTABLE 120W
RUIJIE RG-NIS-PA120-48 INDUSTRIAL POWER SUPPLY AC/DC RAIL MOUNTABLE 120W
RUIJIE RG-NIS-PA120-48 INDUSTRIAL POWER SUPPLY AC/DC RAIL MOUNTABLE 120W
RUIJIE RG-NIS-PA120-48 INDUSTRIAL POWER SUPPLY AC/DC RAIL MOUNTABLE 120W
Click to open expanded view
Brand keytechonline.com
Title RUIJIE RG-NIS-PA120-48 INDUSTRIAL POWER SUPPLY AC/DC RAIL MOUNTABLE 120W

RUIJIE RG-NIS-PA120-48 INDUSTRIAL POWER SUPPLY AC/DC RAIL MOUNTABLE 120W

SPECIFICATION

BRAND : RUIJIE

MANUFACTURE : POWER SYPPLY

MODEL : RG-NIS-PA120-48

INPUT VOLTAGE : 85-264V 47-63Hz

OUTPUT VOLTAGE : 48 V DC

DESCRIPTION

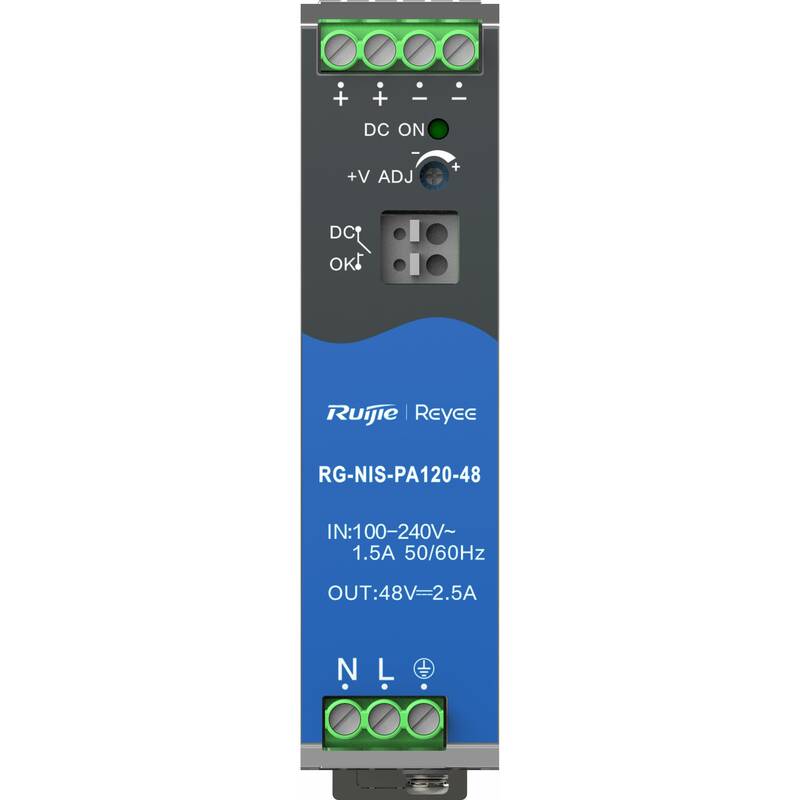

The Ruijie-Reyee RG-NIS-PA120-48 is a DC power supply module that provides DC power input to one RG-NIS3100-4GT2SFP-HP Industrial Switch. It supplies 48 V/2.5 A rated voltage to the system. The front panel has a three-pin power connector at the bottom for connecting a standard 10 A power cord. The ADJ port is for outputs adjustable voltage from 47V to 53V based on adjustable resistance. DC OK Relay Contact: Rated: 30V at 1A, resistive load. The relay contacts are normally “ON” (closed) when the output (Vout) is greater than 90% of its rated value.

Accepts AC or DC input (dualuse of same terminal), Built-in active PFC function, 150% peak load output for 3 seconds, Output short circuit, over-current, over-voltage, over-temperature protection, Safety according to lEC/UL/BS EN 62368, Rated Voltage Range: 100-240V, 50/60Hz, Max. Voltage Range: 85-264V, 47-63Hz, Max. Output Power: 120W, Ground-Leakage Current: ≤ 1Ma, Operating Temperature: -40ºC to +70ºC, Storage Temperature: -40ºC to +85ºC, Storage Humidity: 20% RH to 95% RH (non-condensing), Operating Humidity: Maximum: 90% RH (non-condensing), Weight: 0.49 kg, Power Cord Specification: 10A power cord.

Price
25.000 KD
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

  • We offer free shipping on all orders over 100 KD within the Kuwait city and Salmiya Shuwaikh.
  • For orders under 100 KD, a flat shipping fee of 3 KD for Accessories will be applied and 5 KD for Network Cabinets.

Have a question?
RUIJIE RG-NIS-PA120-48 INDUSTRIAL POWER SUPPLY AC/DC RAIL MOUNTABLE 120W

RUIJIE RG-NIS-PA120-48 INDUSTRIAL POWER SUPPLY AC/DC RAIL MOUNTABLE 120W

25.000 KD

Product info

SPECIFICATION

BRAND : RUIJIE

MANUFACTURE : POWER SYPPLY

MODEL : RG-NIS-PA120-48

INPUT VOLTAGE : 85-264V 47-63Hz

OUTPUT VOLTAGE : 48 V DC

DESCRIPTION

The Ruijie-Reyee RG-NIS-PA120-48 is a DC power supply module that provides DC power input to one RG-NIS3100-4GT2SFP-HP Industrial Switch. It supplies 48 V/2.5 A rated voltage to the system. The front panel has a three-pin power connector at the bottom for connecting a standard 10 A power cord. The ADJ port is for outputs adjustable voltage from 47V to 53V based on adjustable resistance. DC OK Relay Contact: Rated: 30V at 1A, resistive load. The relay contacts are normally “ON” (closed) when the output (Vout) is greater than 90% of its rated value.

Accepts AC or DC input (dualuse of same terminal), Built-in active PFC function, 150% peak load output for 3 seconds, Output short circuit, over-current, over-voltage, over-temperature protection, Safety according to lEC/UL/BS EN 62368, Rated Voltage Range: 100-240V, 50/60Hz, Max. Voltage Range: 85-264V, 47-63Hz, Max. Output Power: 120W, Ground-Leakage Current: ≤ 1Ma, Operating Temperature: -40ºC to +70ºC, Storage Temperature: -40ºC to +85ºC, Storage Humidity: 20% RH to 95% RH (non-condensing), Operating Humidity: Maximum: 90% RH (non-condensing), Weight: 0.49 kg, Power Cord Specification: 10A power cord.
