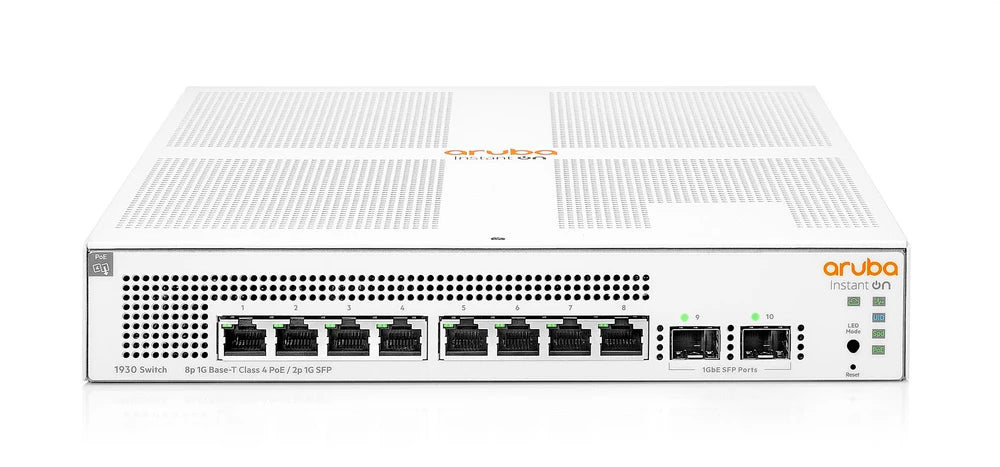

ARUBA 8PORTS GIGABIT 4PORTS POE MANAGED INSTANT ON 1930 8G CLASS4 POE 2SFP 124W SWITCH-JL681A
Click to open expanded view
Brand keytechonline.com
Title ARUBA 8PORTS GIGABIT 4PORTS POE MANAGED INSTANT ON 1930 8G CLASS4 POE 2SFP 124W SWITCH-JL681A

ARUBA 8PORTS GIGABIT 4PORTS POE MANAGED INSTANT ON 1930 8G CLASS4 POE 2SFP 124W SWITCH-JL681A

SPECIFICATION

BRAND : ARUBA

MANUFACTURE : SWITCH POE

MODEL : INSTANT ON 1930 8PORT 2SFP

PART NUMBER : JL681A

PORTS : 8PORT GIGABIT 4PORT POE

SWITCHING CAPACITY : 14.88MPPS

POE BUDGET : 124W

MANAGE TYPE : MANAGED

LAYER TYPE : L-2

DESCRIPTION

The Aruba Instant On 1930 switches features advanced, smart-managed, fixed- configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance. PoE 2SFP (24W) Switch, (8) RJ-45 autosensing 10/100/1000 Class 4 PoE ports, (2) SFP 1000 Mbps ports (min=0 max=2 SFP Transceivers).

Managed plug-and-play-up to 14.88 Mpps, 150.2 W (maximum), PoE to power APs and IoT devices like IP phones, surveillance cameras and door locks, Limited Lifetime warranty, Security controls let you define access in each area of your network, keeping your business data safe, Convenient mobile app and webbased GUI for set up, management and troubleshooting, Dimensions: 1.73" H x 10" W x 6.28" D, Aruba InstantOn PoE Switch 1930 8PORT 4POE (JL681A)

Aruba Instant On Switch 1930 (JL681A) is gigabit, 8-port, manageable (smart managed) PoE switch with 124W of power, additionally equipped with two SFP 1Gb ports. This is one of many products from the entire series of Aruba InstantOn 1930 PoE switches, and we must admit that its portfolio is very large. Aruba Instant On PoE Switch JL681A.The JL681A model is equipped with an ARM Cortex-A9 processor with 800MHz, 512MB SDRAM and 256MB flash memory. As mentioned earlier the switch has 8 RJ-45 ports (autosensing) 10/100/1000Mbps with PoE (Class 4) option and two SFP 1GbE ports. The fact that the switch supports the 802.3at/af standard and works in Layer2 makes Aruba Instant On 1930 JL681A a very versatile solution.

JL691A has a power budget of 124W, and while in some documentation we can find a value of 150,2W the difference in these values results from the fact that 150W is the total power consumption of the device, while 124W is only for PoE capabilities. Another curiosity is the "Idle Power" parameter ,with a value of 11.7W, which means that the switch only connected to the power source has such power consumption. During normal operation (without power supply on PoE ports) the switch can consume even up to 26.2W.

Starting process JL691A-Connecting the switch to the network, To enable remote management of the switch with a web browser, connect the device to the computer network. By default, the switch is configured to download the IP address automatically from our DHCP server. If the switch does not get the IP address from the DHCP server, then the switch gets the IP address 192.168.1.1. The Aruba Instant On 1930 JL681A also supports LLDP (Link Layer Discovery Protocol), so that the IP address of the switch or management station can be easily detected.

Price
70.000 KD
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

  • We offer free shipping on all orders over 100 KD within the Kuwait city and Salmiya Shuwaikh.
  • For orders under 100 KD, a flat shipping fee of 3 KD for Accessories will be applied and 5 KD for Network Cabinets.
