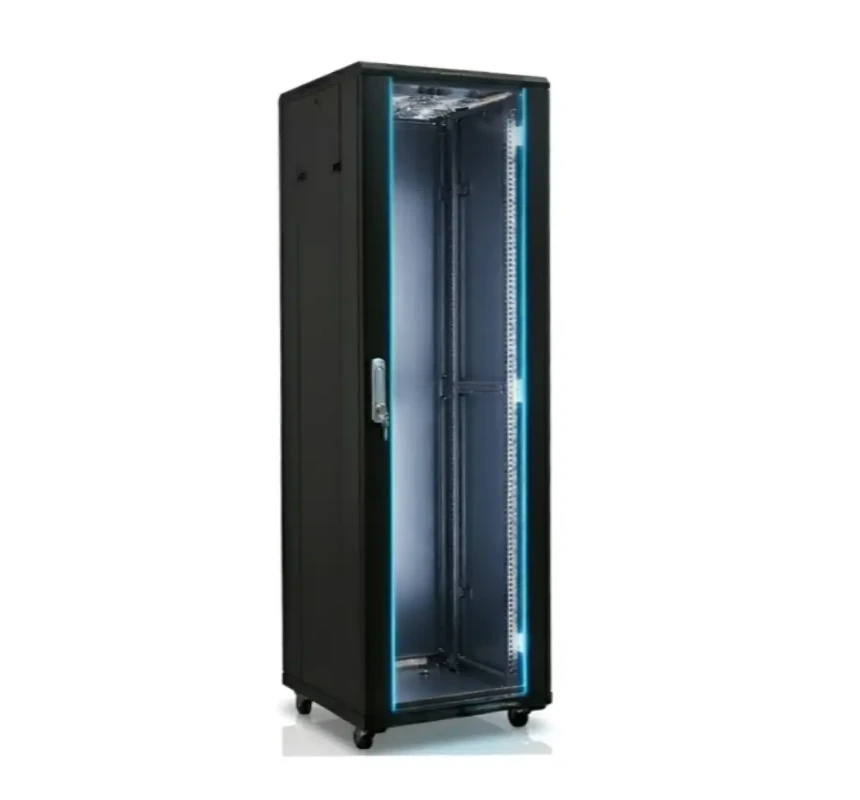

42U (600x800) FLOOR STANDING NETWORK CABINET

Description

A). Toughened glass front door with spring lock, steel rear door with

small round lock.

B). 19” standard installation, achieve the international standard for the

installation of the versatility of the parts, door interchangeability.

C). Removable side panels, easy to install and maintain.

D). Assembled frame structure, assembled and disassembled shipment,

maximize save shipping costs.

E). Various optional accessories, convenient and fast installation,

efficient cabinet baying kit.

F). Adjustable feet and heavy duty castors are available at the same

time, convenient to move or fix.

G). Several lockable cable entry on top cover and bottom panel. Front

rear door and side panel easy to install and remove, bottom ventilation

and rat proof.

H). Various optional dimensions and structure according to customer

requirements.

Main Material

A). SPCC cold rolled steel

B). Thickness: mounting profile 2.0mm. mounting angle 1.5mm, others

1.2mm.

Surface Finish

A). Degreasing, pickling, phosphoric, powder coated

Degree of Protection

A). IP20

 Loading Capacity

A). Static loading: 1000KG

Color

A). Black RAL9004

SPECIFICATION

42u (600x800) Width-600mm, Depth-800mm, Height-2000mm

Doors:

1.         Front Door: Features a tempered glass design with a round lock or spring lock.

2.       Rear Door: Options include a solid steel door with a small round lock or a mesh door with a spring lock.

3.         Removable Side Doors: Available, optionally equipped with a small round lock.

Accessories:

1.        Cooling Fans: On the top cover, two fans for racks with a depth of 600mm, and four fans for racks with depths of 800mm or 1000mm.

2.         Screws & Cage Nuts: 20-40 sets included, depending on rack height. Racks below 27U come with 20 sets, 32U and 37U with 30 sets, and 42U and 47U with 40 sets.

3.         Castors: Four castors included, with an option for brakes.

4.         Adjustable Feet: Four adjustable feet are included.
