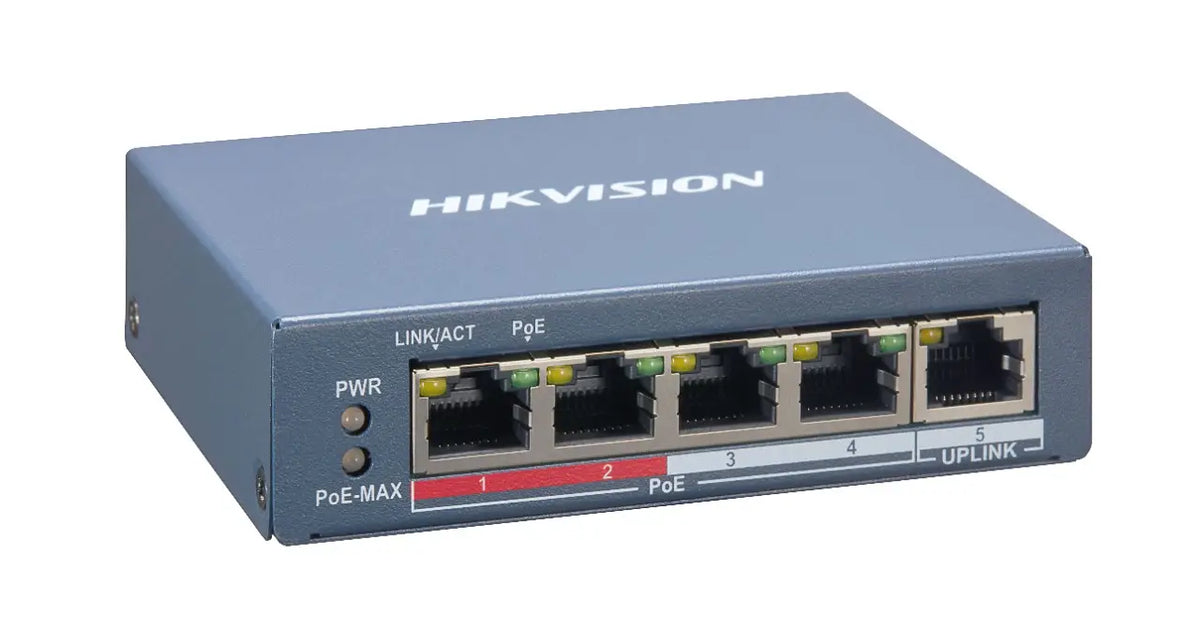

HIKVISION 5PORT 10/100 MANAGED FAST ETHERNET SMART POE SWITCH (DS-3E1105P-EI/M)

SPECIFICATION

BRAND : HIKVISION

MANUFACTURE : SWITCH POE

MODEL : DS-3E1105P-EI/M

POE PORTS : 4 PORTS POE 10/100

MAX POE POWER BUDGET : 45W

MANAGED TYPE : MANAGED

DESCRIPTION

HIKVISION 5PORT 10/100 FAST ETHERNET SMART POE MANAGED SWITCH (DS-3E1105P-EI/M), 4 Port Fast Ethernet Smart POE Switch, 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port, Total PoE Power Budget 45W, Support 802.1Q VLAN, Support PoE watchdog to detect and restart the cameras that do not respond, Support STP/RSTP Loop prevention, Support cable detection to locate failure, Up to 300 m Long Range PoE Transmission, 6 KV Surge Protection, Shell Metal material, fan-free design, Net Weight 0.26 kg (0.573 lb), Gross Weight 0.75 kg (1.65 lb), Dimensions (W × H × D) 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'').

Operating Temperature 0 °C to 40 °C (32 °F to 104 °F), Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F), Operating Humidity 5% to 95% (no condensation), Relative Humidity 5% to 95% (no condensation), Power Supply 54VDC, 0.92A, Installation Mode Desk-Mounted, Wall-Mounted, Max. Power Consumption 50 W, Power Consumption in Idle 5 W, Surge Protection 6 KV,Network Parameters Ports 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port, MAC Address Table 2 K, Switching Capacity 1.2 Gbps, Packet Forwarding Rate 0.89 Mpps, Internal Cache 768 Kbits,

Software Function- Port Isolation Ports 1 to 4: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. PoE Watchdog Ports 1 to 4: auto detect and restart the cameras that do not respond., Link Aggregation. Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation groups. Loop Prevention Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. VLAN VLAN is used for network scale planning and network health improvement.

Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN. Long Range Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate.3. Display the PoE power usage. 4. Display topology information.5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. System Maintenance Support device management via web.

Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating. VIP Port Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient. PoE Power Supply PoE Standard IEEE 802.3af,IEEE 802.3at, PoE Power Pin End-span: 1/2(-), 3/6(+), PoE Port PoE: Ports 1 to 4, Max. Port Power 30 W, PoE Power Budget 45 W.
